Low power consumption: 100mW per channel
Adjustable output amplitude, pre-emphasis, and signal detection threshold
20uApp sensitivity @ BER=1e-12
2.5mApp overload capacity
I2C digital control interface
Symmetrical pad design to maximize module design flexibility
Independent RSSI function
Supports isolated or common-cathode photodetector arrays from multiple vendors
Supports -55°C to +85°C module case temperature applications

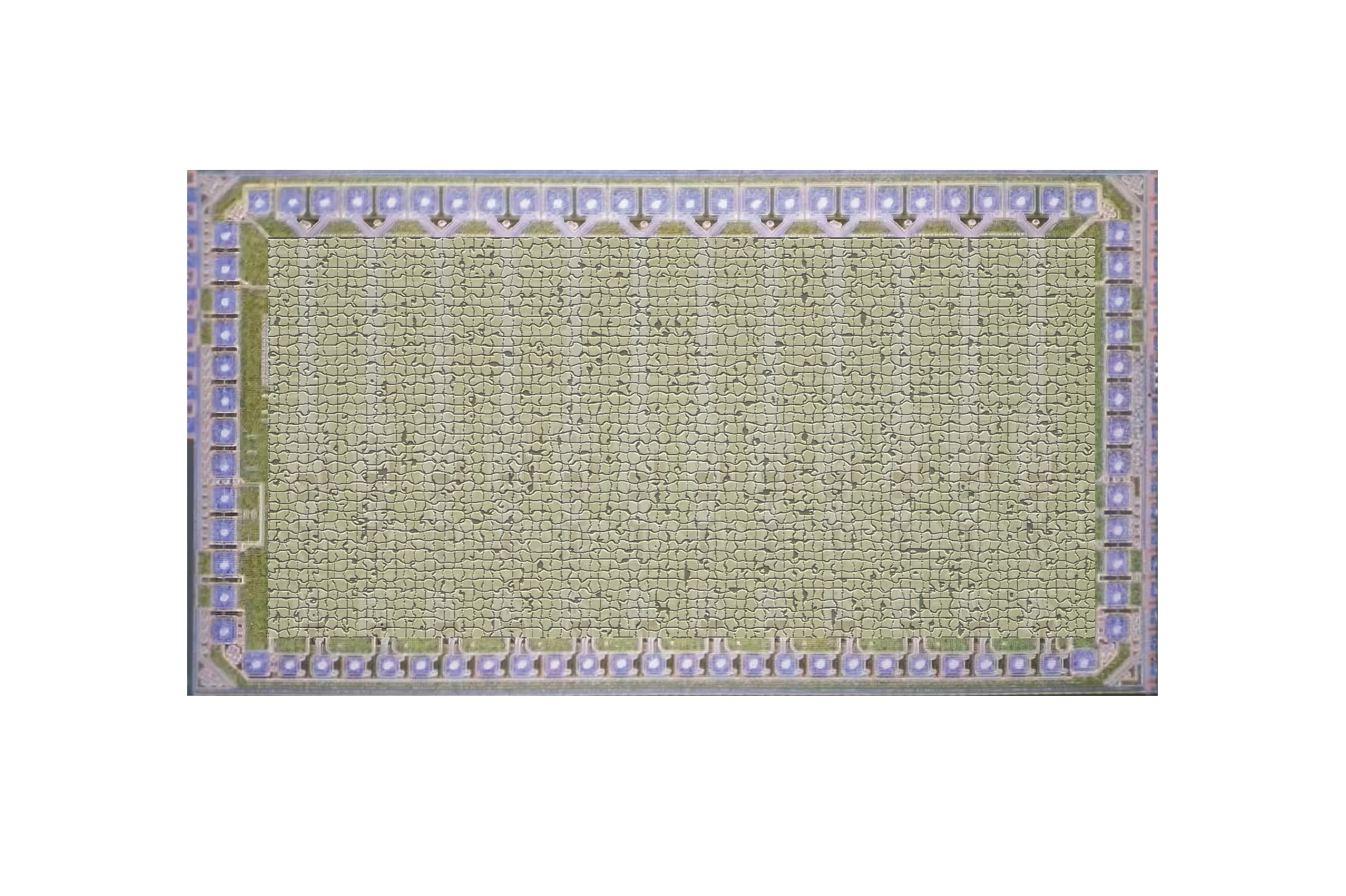

PHO16012
12-channel 16Gbps Transimpedance Amplifier with 250μm Pitch (WB)
FLO16012 is a 12-channel trans-impedance limiting amplifier array designed for the 200G parallel optical interconnect market.Combined with PIN photodetectors, it enables the design of high-capacity and high-reliability optical modules for data communication applications.This product operates on a 3.3V single power supply and integrates 12 channels of trans-impedance amplifiers (TIA), limiting amplifiers (LA), and CML output driver stages.Each channel also integrates automatic gain control (AGC) and signal detection (SD) circuitry.

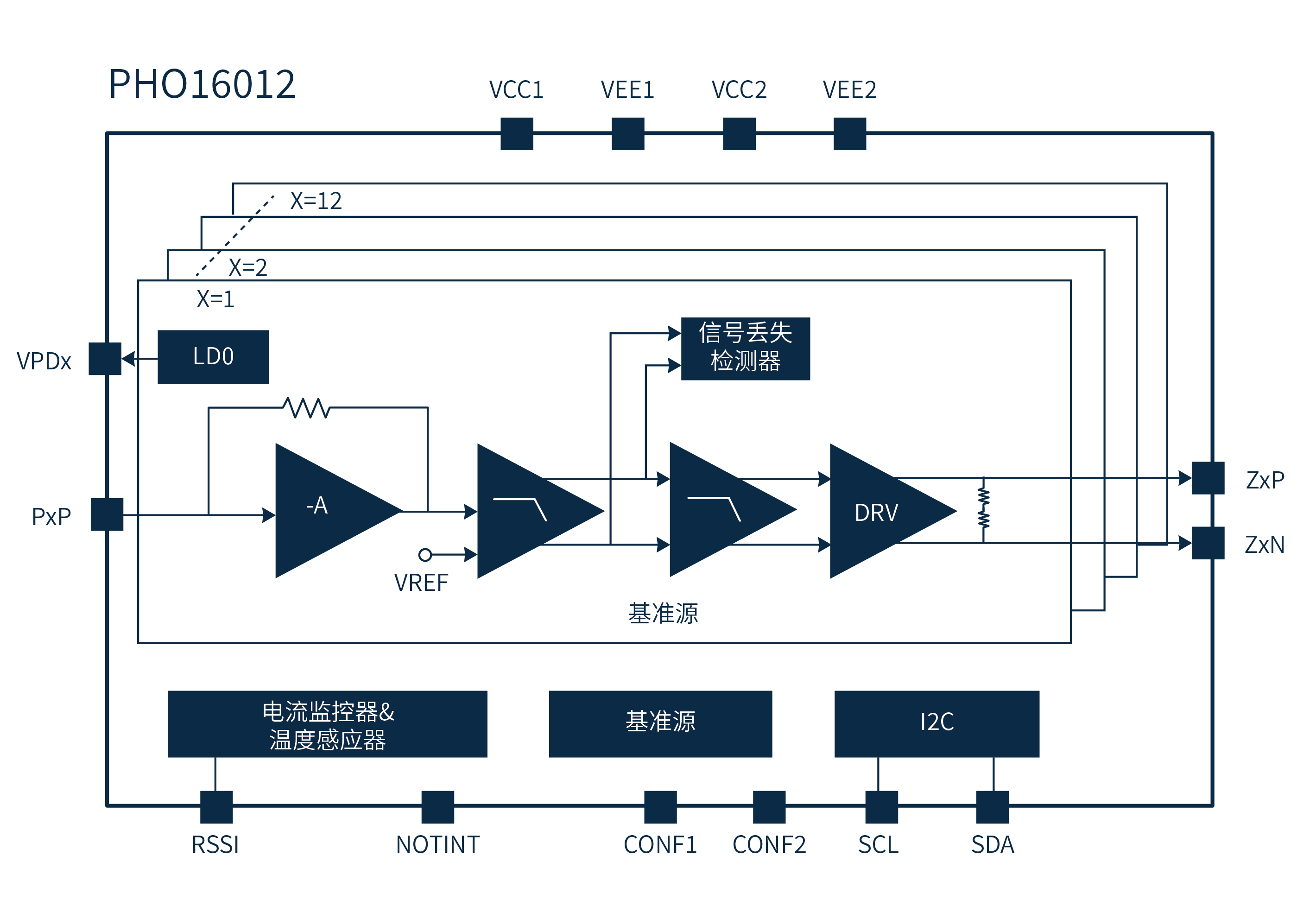

Application Block Diagram
Features
Applications
IEEE 802.3ba Ethernet transceivers
Infiniband QDR & FDR active optical cables
Proprietary multi-channel optical modules
