Supports 3.3V/2.5V/1.8V, industrial temperature range applications from -40 ° C to+85 ° C
Support crystal oscillator or external reference clock input
High performance, low phase noise PLL, 250 fs RMS typical output phase jitter
Built in 4 sets of OTP, supporting in-house OTP programming
Support software mode or hardware mode operation
Support PCIE 1.0/2.0/3.0/4.0/5.0/5.0/6.0 when the display frequency is turned off
Supports PCIE 1.0/2.0/3.0/4.0/5.0/5.0/6.0 under display frequency conditions
11 universal supports LVCMOS/LVDS/HCLS/LP-HCLSL/LVPECL/CML level format output
Programmable output enable/power down mode

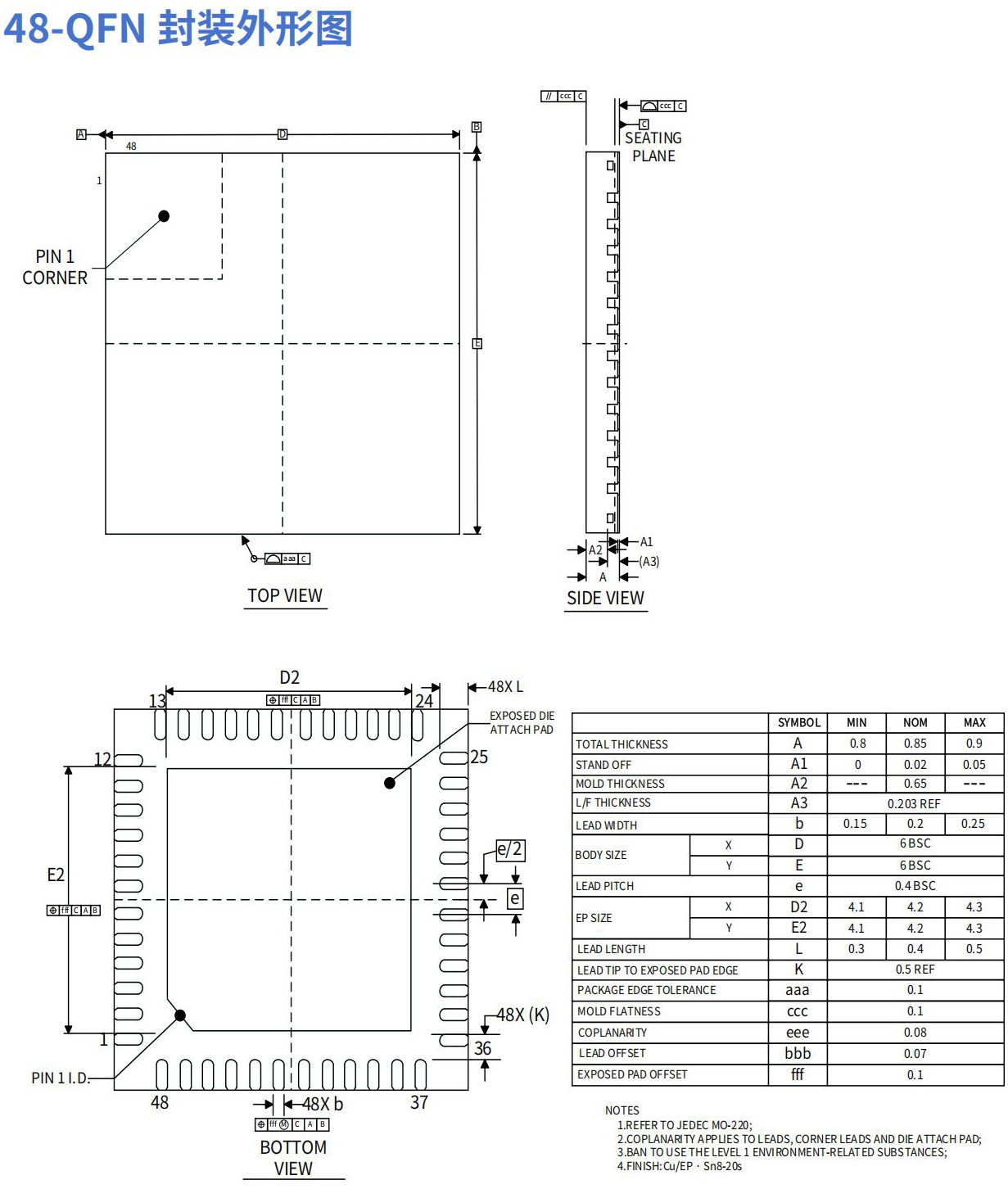

Provide 6 × 6mm 48 QFN package
Independent output clock power pin: 3.3V， 2.5V or 1.8V
Output clock frequency range:
Difference: 1kHz ~ 350MHz
LVCMOS： 1kHz ~ 250MHz
LVCMOS supports single ended, dual ended in-phase, or dual ended differential output
